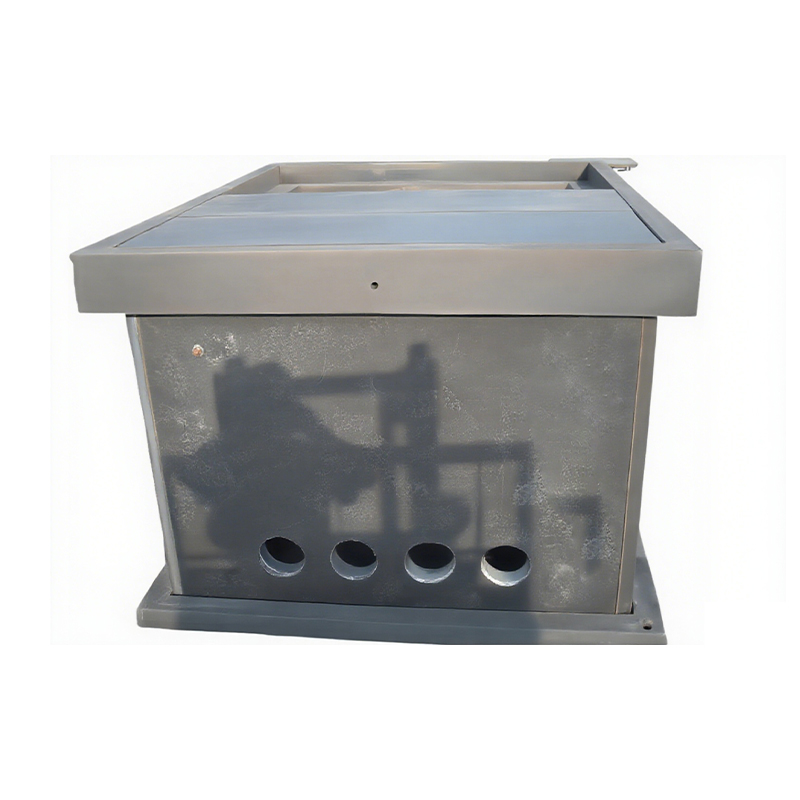

Prefabricated Lightweight Cable Well
Light weight, small excavation area, simple assembly, fast construction and beautiful appearance.
● Base, four side panels, ring beam (cap), cover
● Cable duct for pedestrian power cover, cable duct for vehicle power cover.
● Made of inorganic high-performance fiber composite (UCFC) with mechanical property grade R150, in accordance with the China Southern Power Grid Corporation's substation standard design and relevant technical specifications.
● Side wall structure thickness is 7-8 cm, bottom plate thickness is 8-10 cm, with a cross-shaped water flow channel in the center with a slope of 10 mm.
● Lightweight, small excavation area, simple assembly, fast construction, and aesthetically pleasing.
● 1/4 the weight of a precast concrete cable trench, increasing construction speed by approximately 2-3 times.
